Battery Testing Chambers

We supply a variety of test chambers for testing small battery cells to large lithium ion battery packs. Battery test chambers are supplied to a variety of industries including telecommunications, computer and automotive. With the goal of reducing automobile emissions and the development of electric vehicles, the need for lithium ion battery testing is even more critical. Our proven experience provides the most cost-effective solutions. Each test chamber is built according to specific test requirements and may be interfaced with battery cyclers, control & monitoring data acquisitions systems and other test equipment for a complete integrated test solution.

All environmental chambers are designed with safety in mind. A variety of safety features are provided for reliability and abuse testing of batteries. These features may be incorporated into CSZ test chambers and tailored to the various hazard levels of EUCAR (European Council for Automotive R&D), a consortium of European car manufacturers. To better assess the hazard potential of tests, EUCAR has investigated hazardous situations and divided them into eight risk classes. The development of the safety equipment of our battery test systems is also based on this classification. For each hazard level, we recommend specific safety options that can be included with your chamber to meet your specifications to safety test your product. Together with our customers, we assess which safety devices are necessary for the respective test chambers.

Battery Testing Chambers Quotes



Hazard Severity Level Description Classification Criteria and Effect
0 No Effect No effect. No loss of functionality
1 Passive Protection Activated No defect; no leakage; no venting, fire, or flame; no rupture; no explosion; no exothermic reaction or thermal runaway. Cell reversibly damaged. Repair of protection device needed.
2 Defect/Damage No leakage; no venting, fire, or flame; no rupture; no explosion; no exothermic reaction or thermal runaway. Cell irreversibly damaged. Repair needed.
3 Minor Leakage No venting, fire, or flame*; no rupture; no explosion. Weight loss
4 Major Leakage/ Venting No fire or flame; no rupture; no explosion. Weight loss ≥50% of electrolyte weight (electrolyte = solvent + salt).
5 Fire or Flame No rupture; no explosion (i.e., no flying parts).
6 Rupture No explosion, but flying parts of the active mass
7 Explosion Explosion (i.e., disintegration of the cell).
*The presence of flame requires the presence of an ignition source in combination with fuel and oxidizer in concentrations that will support combustion. A fire or flame will not be observed if any of these elements are absent. For this reason, we recommend that a spark source be used during tests that are likely to result in venting of cell(s). We believe that “credible abuse environments” would likely include a spark source. Thus, if a spark source were added to the test configuration and the gas or liquid expelled from the cell was flammable, the test article would likely progress from level 3 or level 4 to level 5.


  • Chamber Information
  • Touch Screen Controller
  • Available Safety Features
  • Test Specifications

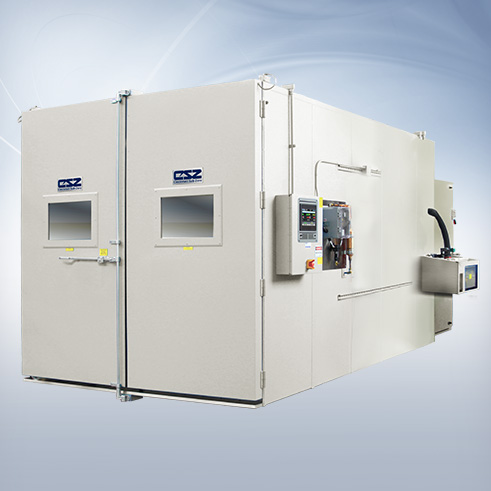

CSZ offers a large selection of test chambers for testing batteries of any size. Temperatures range from -70°C to +190°C (-94°F to +375°F) with an optional humidity range from 10% to 98%. Below are various types of chambers used for battery testing applications.
  • High/Low Temperature Cycling
  • Humidity Simulation
  • AGREE Vibration Combined with temperature/humidity
  • Altitude Simulation
  • Explosion Proof Chambers
  • Thermal Shock
Our Battery Test Chambers meet IEC, UL and a variety of other battery test specifications.

CSZ EZT-570S Touch Screen Controller is designed to save chamber programming and setup time. Standard features data logging, data file access via memory stick or PC, Ethernet control and monitoring, alarm notification via email or phone text message, full system security, online help & voice assistance in multiple languages and more.

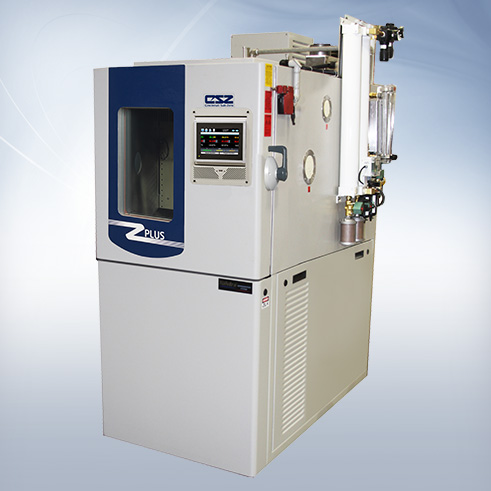

CSZ environmental chambers are designed with safety in mind. Our Engineering team will review test requirements with the customer and incorporate applicable test chamber safety features for the specific battery test application. Below is a partial list of safety features that may be incorporated into CSZ test chambers.

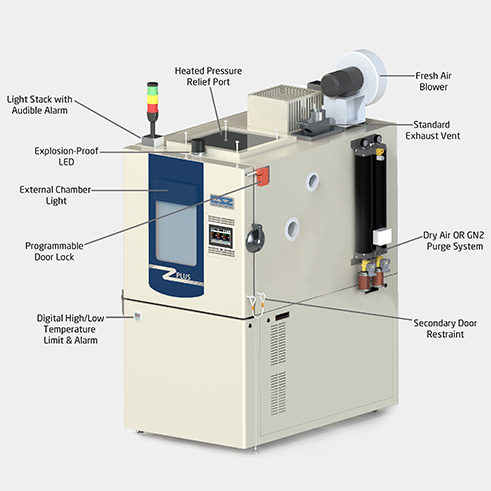

  • Pressure Relief Vent
  • Fresh Air Blower or N2/Dry Air Purge
  • Product Temperature Monitoring
  • Temperature Limited Sheathed Heaters
  • Electronic Door Lock
  • Optical Alarm
  • External Mounted Light
  • Product Limit with Alarm
  • Intrinsically Safe Barriers
  • GN2 Purge
  • Non-sparking Fan Blades
  • Fire Detection and Suppression
  • Gas Monitors

Specification Description
ANSI C18.3M, Part 2 Portable Lithium Primary Cells and Batteries - Safety Standard
IEC 60086-4 Primary Batteries – Safety of Lithium Batteries
IEC 61960 Secondary Lithium Cells and Batteries for Portable Applications
IEC 62133 Portable Sealed Secondary Cells and for Batteries made from them, for use in Portable Applications
IEC 62281 Safety of primary and secondary lithium cells and batteries during transport (similar to UN/DOT 38.3)
IEC 62660-2 Secondary lithium-ion cells for the propulsion of electric road vehicles – part 2: reliability
IEEE 1725 Rechargeable Batteries for Cellular Telephones
IEEE 1625 Rechargeable Batteries for Multi-Cell Mobile Computing Devices
RTCA DO-311 Minimum Operational Performance Standards for Rechargeable Lithium Battery Systems
SAE J 2929 Electric and Hybrid Vehicle Propulsion Battery System Safety Standard - Lithium -Based Rechargeable Cells
SAE J 2289 Electric Drive Battery Pack System Functional Guidelines
SAE J 2464 Electric and Hybrid Electric Vehicle Rechargeable Energy Storage System (RESS) Safety and Abuse Testing
UN/DOT 38.3 Covers transportation safety testing for all lithium metal and lithium ion cells and batteries
UL 1642 Used for testing lithium cells. Battery level tests are covered by UL 2054
UL 2054 Household and Commercial Batteries - Component cell level testing covered by UL 1642
UL 2580 Batteries for use in Electric Vehicles
UL 2054 Household and Commercial Batteries - Component cell level testing covered by UL 1642
UN/DOT 38.3 Covers transportation safety testing for all lithium metal and lithium ion cells and batteries
USCAR Battery safety and performance from the EV Battery Test Procedures Manual, Battery Technology Life Verification Test Manual
