Z-Plus Temperature & Humidity Chambers

Basic to Rapid Temperature Cycling

CSZ's Z-Plus Test Chambers are capable of simulating a variety of temperature and humidity conditions for environmental testing. Z-Plus chambers are available in a variety of sizes and performance packages with over 90 models to choose from and may be used for basic thermal cycling to accelerated stress testing. Sizes range from 8 cu. ft. (227L) to 80 cu. ft. (2265L). These chambers are designed for ease-of-use, reliability and performance and include many user-friendly features standard with your purchase for the best value in the industry.

The CSZ EZT-570i Touch Screen Controller includes a 7” (18 cm) or optional 10” (25 cm) touch screen and the latest in test chamber programming for ease of use. Standard features include data logging, data file access via memory stick or PC, Ethernet control and monitoring, alarm notification via email or phone text message, data file backup, full system security, online help & voice assistance in multiple languages and more.

Temperature Testing Quote

Environmental Test Chamber Accessories
  • Designed for ease-of-use
  • Energy-efficient refrigeration design
  • Quality construction
  • Flexible design allows for a full list of options to meet your specific testing needs
  • Includes the largest selection of standard features, start-up DVD and the best warranty in the industry

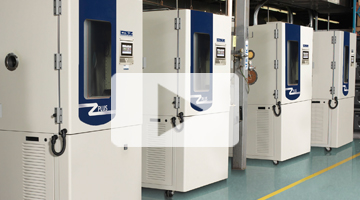

Features Video

EZ-Tilt Controller
  • CSZ EZT-570i Touch Screen Controller with EZ-Tilt
  • Ethernet monitoring & control
  • RS-232, RS-485 serial communications
  • Slide-Out, Adjustable product shelf
  • Two, 4" (10 cm) circular ports
  • Fog-free viewing window & interior light
  • With a full engineering team on staff, CSZ can customize a variety of options to meet our customers needs.
  • Specifications
  • Dimensions
  • Instrumentation
  • Cabinet
  • Refrigeration

Model ZP(H)
Size 8, 16, 32, 44, 64 or 80 cu. ft. (230L, 450L, 900L, 1250L, 1810L, 2265L)
Temperature Ranges Single Stage: -34°C to +190°C (-30°F to +375°F)
Tundra®: -45°C to +190°C (-50°F to +375°F)
Cascade: -70°C to +190°C (-94°F to +375°F)
Optional Humidity Range 10% to 98% RH
5% to 98% RH (optional)

  Interior Workspace Dimensions (WxDxH) Exterior Dimensions
ZP(H)-8 24" x 24" x 24"
(61cm x 61cm x 61cm)
36" x 57" x 76"
(91cm x 145cm x 193cm)
ZP(H)-16  30" x 30" x 30"
(76cm x 76cm x 76cm)
42" x 63" x 82"
(107cm x 160cm x 208cm)
ZP(H)-32  38" x 38" x 38"
(97cm x 97cm x 97cm)
50" x 71" x 91.5"
(127cm x 180cm x 232cm)
ZP(H)-44 44”W x 38”D x 46”H
(112cm x 97cm x 117cm)
56.5”W x 71”D x 99.5”H
(143.5cm x 180cm x 253cm)
ZP(H)-64  48”W x 48”D x 48”H
(122cm x 122cm x 122cm)
60.5”W x 81”D x 101.5”H
(154cm x 205cm x 258cm)
ZP(H)-80  48”W x 60”D x 48”H
(122cm x 152cm x 122cm)
67”W x 94”D x 101.5”H
(170cm x 238cm x 258cm)

Touch Screen Controller
  • CSZ EZT-570i Touch Screen Controller is designed to save chamber programming and setup time. Controller features new EZ-Tilt function tilting the controller up or down 10-20 degrees to accommodate users of different heights.
  • A Temperature Limit and alarm is included to protect your product.
  • Safety relay connection is provided to protect your device under test by removing power to it when the chamber is not running.

Temperature Test Chamber
  • One adjustable product shelf slides out for easier product access. Shelf design is non-tipping and supports large product loads.
  • Two, 4" (10 cm) ports are centered on the left and right side of the chamber for ease of cable routing.
  • Fog-free viewing window and interior light makes viewing workspace hassle free.
  • Leveling legs and casters are heavy duty swivel type designed for long life under heavy loading.
  • Single-handed latch operation and removable side panels allow for easy access to all systems.
  • Fully welded ports and shelf pilasters eliminate potential leaks, increasing the life of your chamber.
  • All liners are constructed from Type 304 brushed stainless steel that is easy to clean. All seams are continuously welded to form a hermetically sealed unit to prevent moisture migration.
  • The chamber exterior is constructed of formed sheet steel for structural strength and finished with a durable powder coat finish or textured polyurethane paint. Customer specified paint combinations are available upon request.

Reach In Test Chamber
  • Performance packages are available up to 20HP with a selection of three types of cooling systems to meet a variety of performance specifications.
  • Refrigeration design protects compressors and prolongs life keeping cool during all operating conditions. Refrigeration design uses less power, saving operating costs.
  • Pressure gauges allow operating pressures to be continuously monitored.
  • CSZ test chambers utilize refrigerants which are environmentally safe, non-flammable, non-explosive and have a Zero Ozone Depletion Potential (ODP).
  • High volume airflow system includes robust air circulator motors that provide better airflow and improves controllability within the chamber. Better airflow minimizes temperature gradients and accelerates temperature change rates of the device under test.
