MicroClimate® Benchtop Test Chambers

Compact Chamber Uses Minimal Floor Space

The MicroClimate® 1.2 cubic foot benchtop test chamber is capable of simulating a full range of temperature and humidity conditions. This environmental testing chamber is designed to provide users with a compact unit for testing small components and products.

The MicroClimate® difference is in the design. The small footprint, simple installation and economical price make this chamber the ideal choice for any laboratory. Our benchtop chambers are completely sealed with fully welded ports that eliminate potential leakage, increasing the life of your chamber. Refrigeration design protects compressors and prolongs their life by keeping compressors cool during all operating conditions.

Benchtop Test Chamber Quote

Benefits
Stacked Benchtop Chambers
  • Easy installation
  • Precise temperature & humidity control in small chamber
  • Stackable for reduced footprint or manual thermal shock applications

Features
Test Chamber Controller
  • EZT-430i Touch Screen Controller
  • Ethernet, RS-232 Computer Interface, 2" (5 cm) Access Port
  • 115V and 230V models available in 50/60 hz.
  • Electronic humidity sensor provides accuracy and reliability
  • Includes a one year part and labor warranty

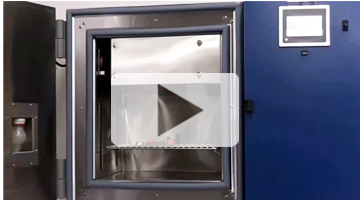

Features Video

  • Specifications
  • Instrumentation
  • Cabinet
  • Refrigeration
  • Humidity
Model MCB(H)-1.2
Size 1.2 cubic feet (35 liters)
Temperature Range Single Stage: -30°C to +190°C (-22°F to +375°F)
Cascade: -70°C to +190°C (-94°F to +375°F)
Optional Humidity Range 10% to 95% RH
Interior Dimensions 16"W x 11"D x 12"H
(40.64cm x 28cm x 30cm)
Exterior Dimensions 36.75"W x30.5"D x 28"H
(93cm x 77cm x 71cm)
Touch Screen Controller
  • The CSZ EZT-430i Touch Screen Controller offers a choice for users to navigate like a smartphone or using windows-based navigation. Standard features include data logging, data file access with memory stick, Ethernet control and monitoring, alarm notification via email and/or phone text message, data file backup system, full system security and more
Benchtop Test Cabinet
  • 2" port for ease of cable routing – larger sizes and custom shapes available.
  • Fully welded ports and shelf pilasters eliminate potential leaks, increasing the life of your chamber.
  • All liners are constructed from Type 304 brushed stainless steel that is easy to clean. All seams are continuously welded to form a hermetically sealed unit to prevent moisture migration.
  • The chamber exterior is constructed of formed sheet steel for structural strength and finished with a durable powder coat finish.
Benchtop Chamber Refrigeration
  • Refrigeration design protects compressors and prolongs life keeping cool during all operating conditions. Refrigeration design uses less power saving operating costs.
  • CSZ test chambers utilize refrigerants which are environmentally safe, non-flammable, non-explosive and have a Zero Ozone Depletion Potential (ODP).
  • Refrigeration pressure gauge.
Benchtop Humidity Chamber
  • An electronic humidity sensor is used on all humidity models for accuracy and minimal maintenance.
  • Humidity water filtration system to filter impurities and protect chamber interior
